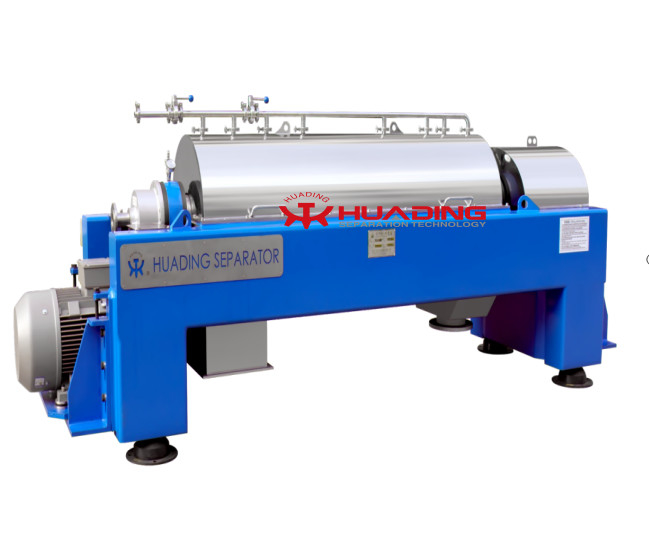

Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205
Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205
Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205
Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205

Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205

Product Details

Place of Origin: YIXING

Brand Name: HUADING

Certification: CE

Model Number: HFSS

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: 3000-15000 USD/SET

Packaging Details: Standard seaworthy package

Delivery Time: 60 Working days

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Product Details

Product Description
Highlight:

Sunflower Oil Decanter Centrifuge

,

Horizontal Continuous Decanter Centrifuge

,

2205 316L Decanter Centrifuge

HMI:
SIEMENS
PLC:
SIEMENS
Frequency Inverter:
SIEMENS/ABB
Material:
SS304/316L/2205
After-sales Service Provided:
Free Spare Parts
After Warranty Service:
Video Technical Support
HMI:
SIEMENS
PLC:
SIEMENS
Frequency Inverter:
SIEMENS/ABB
Material:
SS304/316L/2205
After-sales Service Provided:
Free Spare Parts
After Warranty Service:
Video Technical Support
Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205

Company overview

Yixing Huading Machinery Co.,Ltd is one of the market leaders in the field of centrifugal separation technology in China.The company has over 60 years experience in the design and manufacturing.


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 0

Why Choose Us




60+ experience accumulation
Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment etc.



40000+ installations
HUADING separators has been installing in more than 50 countries/regions.



Innovation is our tradition
More than 100 models have been created to apply broadly in many fields.

Working principle


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 1
Parts


1. Frame
2. Gearbox
3. Primary motor
4. Secondary motor
5. Bowl
6. Screw
7. Hood

--The feed enters the bowl through a stationary inlet tube and is accelerated smoothly by an inlet distributor. The centrifugal force that results from the rotation then causes sedmentationof the solids on the wall of the bowl.

--Separation takes place in a horizontal cylindrical bowl equipped with a screw conveyor.

--The conveyor rotates in the same(adverse) direction as the bowl, but slightly slower(faster), thus moving the solids towards the concial end of the bowl. The cake leaves the bowl through the solids discharge openings into casting.

--The separation process runs through the bowl entire cylindrical section, clarified liquid is separated by adjustable overflow plate.


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 2

Manufacturing standard


1. JB/T20139-2011

Centrifugal machinery requirements

2. JB/T8051-2008

Specification for strength calculation of centrifuge bowl

3. GB19815-2005

Safety requirements for centrifuges

4. JB/T6418-92

Centrifugal machinery - determination of cleanliness

5. JB/T7214-94

General technical specification for centrifugal machinery coating


Design features




Material
All contact with the material are made of high quality stainless steel, or duplex stainless steel. Bowl body all centrifugal casting, to ensure the durability and reliability of the equipment.




Bowl and screw
In order to ensure a high dryness cake, specially designed bowl and spirals are pressed against the dewatered cake at the concial end of the bowl in a high-pressure, two-way manner to minimize the moisture of the cake.

Drive system
The machine uses double motor double frequency conversion, and with multi-stage planetary gear drive. The difference in speed between the bowl and the screw can be automatically adjusted by the control system in real time based on the characteristics of the raw material and the user's requirements. At the same time unique DC bus-powered design, to ensure a strong spiral torque, while greatly reducing power consumption. In addition to include full hydraulic drive, including a variety of drive options for the user to chosse.

Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 3


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 4
Lubrication system
In addition to the traditional manual grease lubrication, optional automatic grease lubrication(or thin oil lubrication) to maximize the main bowl bearing and screw bearing for real-time lubrication, significantly improve the bearing, and then even the whole machine durability and reliability.

Control system
The system adopts SIEMENS PLC + HMI by default, fully integrating the key points including speed, differential, current, torque, vibration and so on.

Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 5




Wear protection
A wide range of wear protection are available, including welded hard facing or spray coating, ceramic port, Zn carbide tiles, chilled hard mental portcastings, etc. all wear protection elements, except welded hard facings or spray coatings, are field replaceable.


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 6

Manufacturing


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 7


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 8


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 9


Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 10





Sunflower Oil Decanter Centrifuge Horizontal Continuous 316L 2205 11
