Automatic 10T H 2 Phase Decanter Centrifuge Machine LW

0.5-10T/H automatic fruit juice clarifier decanter centrifuge beverage concentration

Product description

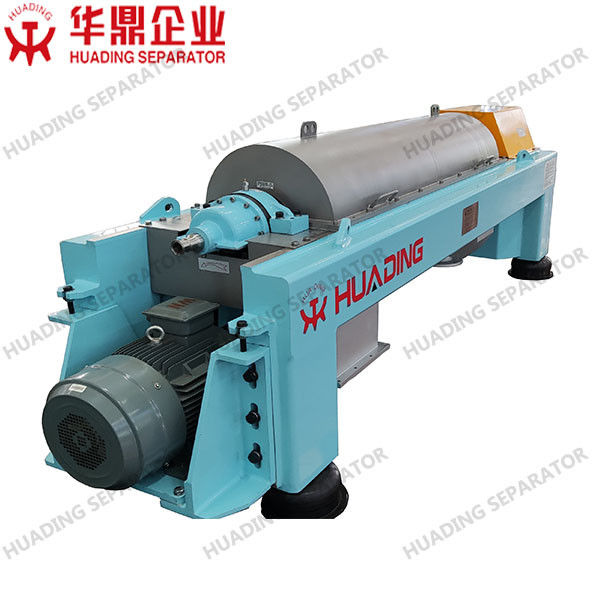

Decanter centrifuge is a horizontal centrifuge with automatic continuous feeding discharging. The settling speed of bowl and screw is determined by the feed material condition, such as particle size, particle shape, the difference in density between solids and liquids as well as their viscosity. The speed of bowl and screw will be adjusted by the VFD through the double motors speed adjustment.

HUADING LW series decanter centrifuge has been widely applied in the fruit juice industry, no matter the turbid juice and clear juice. The decanter centrifuge adapt double motor driving, the bowl and screw are driven by two variable frequency motors and two frequency converters. This type decanter centrifuge has the advantages to treat the materials without a constant solid content and those having strict requirements for the water content of discharged solids. The decanter centrifuge can be used to treat the feed with solid phase particles size of 0.005-3mm and solid content of 0.5-50%

Product feature

1. All the parts contact with the feed material are made by high grade stainless steel, such as double duplex stainless steel
2. The operation is control by PLC module, can release intelligent automatic operation , continuous and automatic feeding and discharging
3. Two motor and two frequency inverter drive system, realize differential speed of bowl and screw stepless regulation and energy return
4. The surface of screw and discharging port is hardened, such as hard alloy and ceramic, better protection for the parts prone to wear and tear, for a long service life
5. Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection

Product parameter

Company introduction

Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 60 years, established in 1954, is the leader in mechanical separating technology in China. The machines produced by Huading Separator are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields, water treatment, such as waste water treatment, sludge dewatering, etc

Why choose us

• 60+ years experience in the design and manufacturing of separator and decanter
• 200+ workers, 30+ technical team and after-sales team
• Complete manufacturing facilities and test equipment, 90% parts of the machines are made in HUADING own factory
• Main outsourcing parts are world famous, such as SKF, SIEMENS, ABB
• Good after-sale service, provide on-site service,help to train staff how to operate and maintain machines
