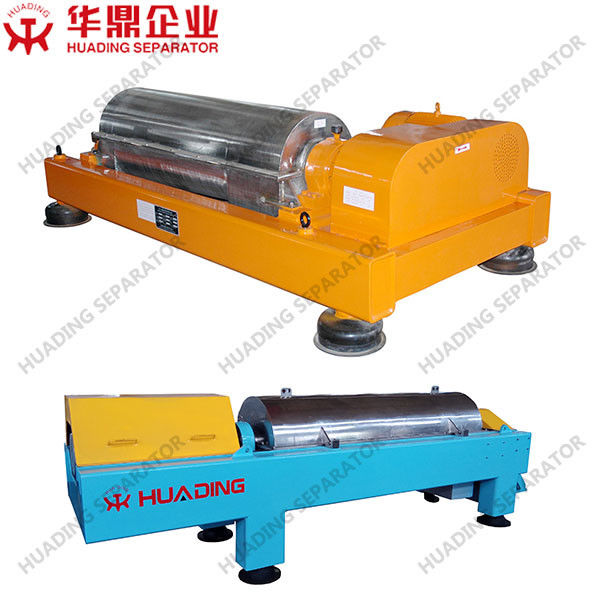

Continuous Horizontal Decanter Centrifuge Screw 90KW Motor

Big capacity automatic screw discharging decanter centrifuge with 90KW motor driving

Product description

The decanter centrifuge is a kind of machinery that carries out continuous separation of materials of density difference in suspensions by using the centrifugal sedimentation principle.

The basic principle is: the bowl and feeding screw make high-speed rotation with a certain differential speed between them, the materials are injected continuously by the feed tube into the inner cylinder of the spiral material pusher, and then enter the bowl after acceleration. Under the action of centrifugal force field, the heavier solids will deposit on the bowl walls and form residue layers. The spiral material pusher will continuously push the deposited solids to the taper end of the bowl and discharge them out of the machine from the residue outlet after dehydration in the drying area

The machine can realize continuous feeding, sedimentation, separation, washing and discharging when it carries out full speed running. It has such features as compact structure, continuous operation, stable running, strong adaptability to materials to be separated, high production capacity, convenient maintenance, etc. It is suitable for separating suspensions containing solids with particle diameter higher then 0.005mm and concentration ranging within 2-40%. It is widely applied in such industries as chemical industry, light industry, medicine, food, environmental protection, etc.

Product features

1. All the parts contact with the feed material are made by high grade stainless steel, such as double duplex stainless steel
2. The operation is control by PLC module, can release intelligent automatic operation , continuous and automatic feeding and discharging
3. Two motor and two frequency inverter drive system, realize differential speed of bowl and screw stepless regulation and energy return
4. The surface of screw and discharging port is hardened, such as hard alloy and ceramic, better protection for the parts prone to wear and tear, for a long service life
5. Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.

Product parameter

Company introduction

Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 60 years, established in 1954, is the leader in mechanical separating technology in China. The machines produced by Huading Separator are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields, water treatment, such as waste water treatment, sludge dewatering, etc

Product line

FAQ

1.Who you are?
Huading Machinery are separators and decanters manufacturer from 1954, we have more than 60 years experience in the design and manufacturing of centrifugal separation equipment. Huading separators and decanters are widely applied in industry of food, beverage,pharmaceutical.chemical,marine,oilfield,energy,mining,mechanical engineering and waste water treatment etc.

2.How do you guarantee the quality?
We are a professional manufacturer with experience of more than 60 years. We have the most advanced equipment and first-class workers. Each of our processing procedures is strictly inspected and has the test report. We also accept FAT testing from customers.

3.How long is the warranty period?
One year after the machine arrives customer site

4. Do you have technicians for installation, commissioning and training?
After-sales service is available, we can send our technicians to customer site for installation,commissioning and training, also can guide online through video

5.What's the payment terms you can accept?
Generally T/T, L/C at sight
