5000L/H Disc Oil Separator Centrifuge Lube Oil Purification System 7.5kW Motor with SS316L Bowl 380V 3 Phase Design

5000L/H Lube Oil Purification Disc Oil Separator Centrifuge

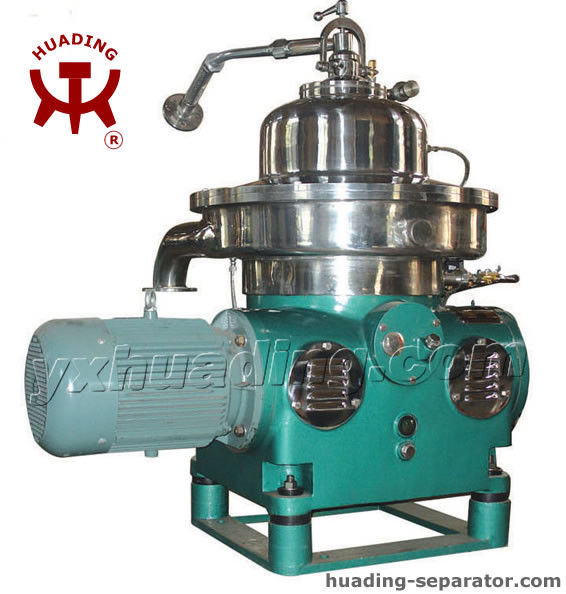

The HLSEP HL-DOS5000L disc oil separator centrifuge is purpose-built for continuous lubricating oil purification in demanding industrial and marine environments. Constructed with SS316L stainless steel for superior corrosion resistance, this centrifuge effectively removes water, wear particles, and oxidation sludge from lube oil systems, significantly extending oil service intervals and protecting critical machinery components.

Key Features

• Continuous Lube Oil Conditioning: Designed for bypass or full-flow installation on lube oil systems, continuously removing contaminants down to 3 μm particle size while maintaining system oil pressure and temperature stability
• 7.5kW Continuous-Duty Motor: Industrial-grade motor rated for 24/7 continuous operation with thermal overload protection and soft-start control, suitable for unattended engine room installation
• SS316L Corrosion-Resistant Bowl: All product-contact surfaces in SS316L stainless steel providing excellent resistance to acidic oil degradation byproducts and water-in-oil emulsions common in extended-drain lube oil systems
• Fine Filtration Performance: Precision-balanced disc stack achieves 3 μm particle removal efficiency, effectively eliminating bearing-damaging wear metals, carbon insolubles, and catalyst fines from circulating lube oil
• Versatile Oil Compatibility: Configured for mineral-based and synthetic lubricating oils, hydraulic fluids, and turbine oils with viscosity range 10-320 cSt at operating temperature

Oil Life Extension Benefits

The HL-DOS5000L typically extends lube oil change intervals by 3-5x compared to conventional filtration-only maintenance,reducing both oil procurement costs and waste oil disposal volumes. Real-time water removal prevents oil emulsification and additive depletion, while continuous solids extraction maintains ISO 4406 cleanliness levels of 16/14/11 or better in properly sized systems.

Applications

• Marine main engine lube oil purification
• Diesel generator lube oil conditioning
• Industrial gearbox and bearing oil systems
• Hydraulic oil purification and recycling
• Steam and gas turbine oil conditioning

Package Includes

• 1 x HL-DOS5000L Disc Oil Separator Main Unit
• 1 x PLC Control Panel with Digital Display
• 1 x Set of Inlet and Outlet Flexible Hoses
• 1 x Spare O-Ring and Gasket Kit (Viton)
• 1 x Sludge Removal Tool Set
• 1 x Operation and Service Manual

Contact HLSEP for oil analysis integration and system sizing consultation.
