Product Details
Place of Origin: CHINA
Brand Name: HUADING
Certification: CE ISO
Model Number: DHZYS
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD20,000-USD200,000 per set
Packaging Details: fumigation wooden case
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Machine Type: |
Vertical |
Operation: |
Automatic |
Capacity: |
200-200,000L/H |
Application: |
Solid Liquid Liquid |
Driving Type: |
Gear |
Color: |
Green, White, Red |
Machine Type: |
Vertical |
Operation: |
Automatic |
Capacity: |
200-200,000L/H |
Application: |
Solid Liquid Liquid |
Driving Type: |
Gear |
Color: |
Green, White, Red |
Big yield automatic produce disc separator for vegetable oil refining
Separation and refining technology for edible oil
Vegetable seeds contain a lot of oil, such as soybeans, sunflowers, peanuts, etc. are common oil crops. Most of the world’s production processes are hot pressing. Oilseeds are first squeezed in a screw press. The pressed oil contains a lot of solid components. In order to initially clarify the pressed oil, it is first separated by a decanter centrifuge. In order to meet the edible standard, the vegetable oil needs to be degummed and desoaped. After the reaction, the colloid and soap are separated by a 3-phase disc separator to obtain high-quality, high-purity oil.
Product description

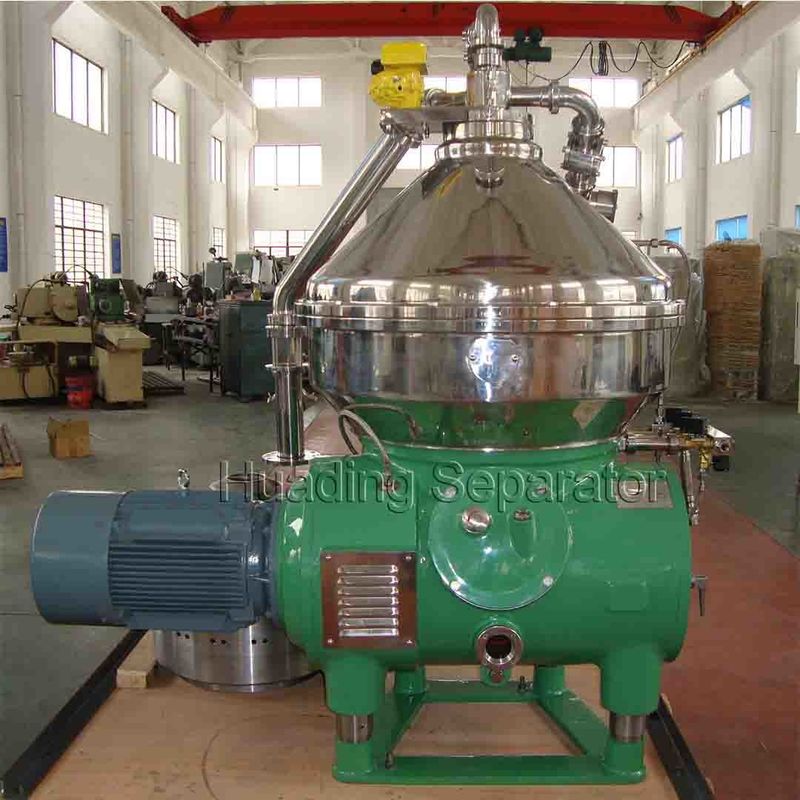

Huading DHZYS series disc separator is designed for edible oil degumming, deacidification and washing process. The machine adopts one inlet pipe, two outlet pipes and one solid outlet discharge port. After the oil reaction, the reacted oil is fed into the separator and rotating in the separator bowl, the solid imprities, the soap and the pure oil form a two-layer separation interface. The solid is discharged through the discharge port in the middle of the separator, the soap and the oil are discharged through the outlet pipes on th upper part of the disc speparator. The whole separation process is continuous.
Application
-sunflower oil
-soybean oil
-peanut oil
-corn oil
-coconut oil
-rice bran oil
-sesame oil
-rapeseed oil
-cottonseed oil
-linseed oil
......
Common models
| Model | Discharge type | Capacity/TPD | Weight/KG |
| DHZYS270 | Self-cleaning | 10-15 | 700 |
| DHZYS380 | Self-cleaning | 20-40 | 1100 |
| DHZYS430 | Self-cleaning | 30-50 | 1200 |
| DHZYS470 | Self-cleaning | 70-150 | 1700 |
| DHZYS500 | Self-cleaning | 150-200 | 2000 |
| DHZYS550 | Self-cleaning | 300-400 | 2200 |
| DHZYS700 | Self-cleaning | 500-600 | 3200 |
| DHZYS810 | Self-cleaning | 800-1200 | 4000 |
Main parameters
| Voltage | 220-440V |
| Power | 4-90KW |
| HMI | SIEMENS |
| PLC | SIEMENS |
| Frequency converter | ABB or CUMARK |
| Motor |
ABB or WANNAN |
Separation effect
Video
