Versatile Tea Extraction Disc Oil Separator For Food And Beverage Industry

How do you maintain an oil separator?
Oil Water Separator Maintenance
1. Turn off the influent water to the unit.
2. Open the unit cover.
3. Remove any oil and dispose of it in a way that complies with company and legal procedures.
4. Drain the water from the separator.
5. Measure the depth of the leftover solids and write it down. ...
6. If necessary, dispose of the solids.

Company introduction

Huading Separator, Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation technology in China.

The company has over 60 years experience in the design and manufacturing of centrifugal separation equipment. Complete systems, customized for specific applications, can be provided in a compact, fully tested, skid-mounted assembly. The company’s equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help customers to clarify, concentrate, and separate products in production.

Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment etc.

Huading Separator’s organization works closely with customers to help them stay ahead in their business line.

Working principle

Disc separator is a device that can quickly and continuously separate solid-liquid and liquid-liquid. The aliases are also called disc centrifuges and disc stack separators, both of which belong to a type of vertical separator. Its working principle is driven by a motor to rotate at a high speed. There is a group of dish-shaped parts nestled together in the bowl. There is a small gap between each two discs. The suspension (or emulsion) is fed into the bowl from a feed tube located in the center of the bowl. When the suspension (or emulsion) flows through the gap between the discs, the solid particles (or droplets) settle on the discs under the action of the centrifuge to form a sediment (or liquid layer). The sludge slides along the surface of the disc to separate from the disc and accumulate in the large diameter part of the bowl. The separated liquid is discharged from the liquid outlet to the bowl. The function of the disc is to shorten the settlement distance of solid particles (or droplets) and expand the settlement area of ​​the bowl. The installation of the disc in the bowl greatly increases the production capacity of the separator. The solids accumulated in the bowl can be removed manually after the separator is shut down by disassembling the bowl, or discharged from the drum through the slag discharge mechanism without stopping the machine.

Main parameter

Application

-Pharma

-Plant extraction

-Vegetable oil

-Animal oil

-Biodiesel

-Mineral oil

-Beverage

-Dairy

......

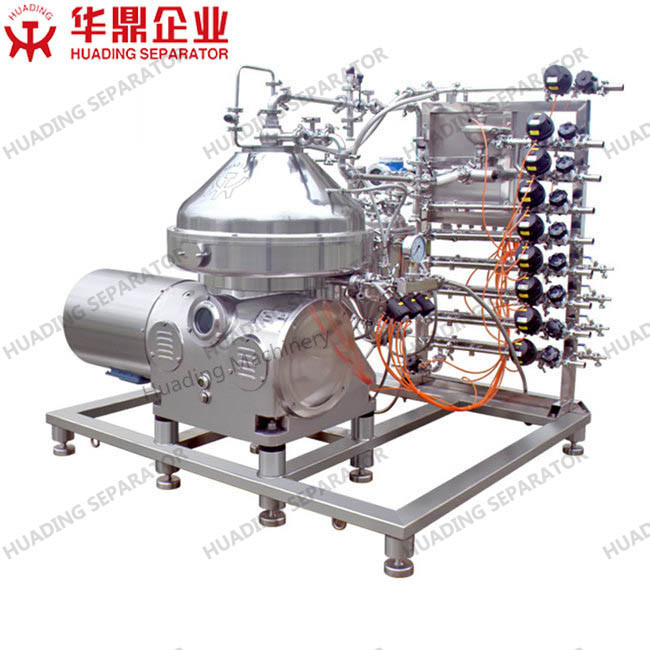

Complete separator with motor
