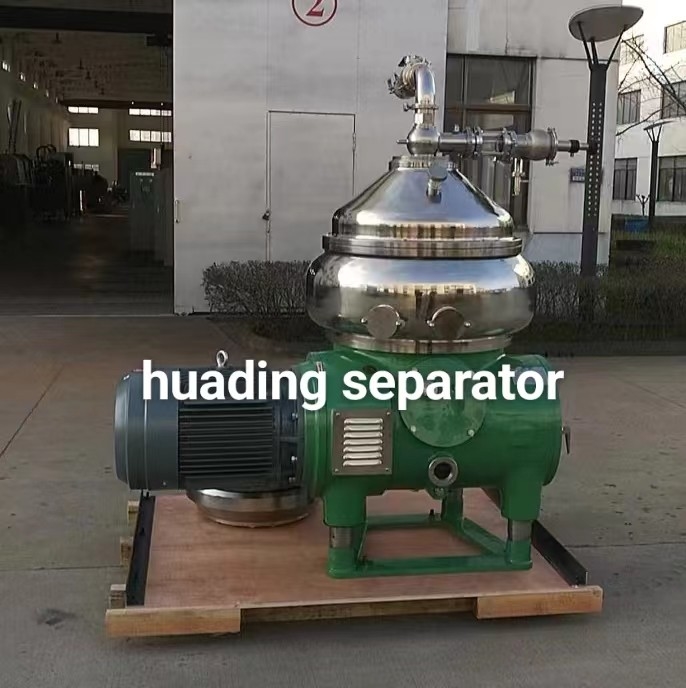

High Quality Self Cleaning Disc Bowl Westfalia Separator Centrifuge

Product Details

Place of Origin: YIXING

Brand Name: HUADING

Certification: CE

Model Number: AFSD

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: 20000-200000 USD/SET

Packaging Details: Standard seaworthy package

Delivery Time: 60 Working days

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Self cleaning Westfalia Separator Centrifuge


Disc Bowl Westfalia Separator Centrifuge


High quality Westfalia Separator Centrifuge

Core Components:
Selling Units:
Single Item
3000 KG
Stainless Steel
Core Components:
Selling Units:
Single Item
3000 KG
Stainless Steel
High Quality Self Cleaning Disc Bowl Westfalia Separator Centrifuge
Bowl diagrammatize
1. feeding pipe
2. centripetal pump
3. discharge port
4. sliding piston
5. small piston
6. sliding piston chamber
7. water room
Product description
Disc separators from Huading Separator are designed especially for liquid-based applications. Using centrifugal force, they separate substances and solids from liquids. They are equally as effective at separating liquid mixtures at the same time as removing solids. Disc separator have become indispensable in all sectors; in fragmentation and enzyme treatment in the chemical and pharmaceutical industry, oils and fats recovery, the production of dairy products, beer, wine, fruit and vegetable juices. As stand-alone machines or integrated in complete process lines, Huading Separator’s extensive product line offers value adding solutions that point the way forward for the entire branch in terms of quality and customer benefit. The disc separator, or disc stack separator, comprises a rotating assembly bowl operating at high speed, a drive mechanism and a cast base frame.
Working principle
The disc stack centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency.
The disc stack provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids.
The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.



1. All parts directly touch to material are made of stainless steel
2. Continuous and automatic operation can minimize labor costs, easy in installation and maintenance
3. High bowl rotation speed with high G-force via VFD adjustable
4. Automatic discharging with PLC control system and LED touch screen operation
5. Full-automatic vibration detector and alarm
6. Running in high speed, operating stability and low noise
7. Stability outlet pressure, large regulating sphere and operating easily

Product Detail

bowl material EN 1.4418, 1.4462, 1.4410
Product Keywords vacuum frying oil water separator

Related criterion
Quality guarantee system of ISO9001-2000
JB/T502-2004 standards
One year warranty
Life - long service
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)

High Quality Self Cleaning Disc Bowl Westfalia Separator Centrifuge 0

Product parameter

Product 3phase disc stack separator
Model AFSD
Capacity 500-10000L/H
Motor power 5.5-30KW
Material Food grade stainless steel(the part contact with feedstock)
Discharging type Batch-type, Automatic
Weight According to the model

Company introduction

Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 60 years, established in 1954, is the leader in mechanical separating technology in China. The machines produced by Huading Separator are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields, water treatment, such as waste water treatment, sludge dewatering, etc

High Quality Self Cleaning Disc Bowl Westfalia Separator Centrifuge 1


What we have

* 60+years design and production experience

* Strong R&D technical team and after-sales service

* Complete production facilities and capacity



High Quality Self Cleaning Disc Bowl Westfalia Separator Centrifuge 2


1. Who we are?
Huading Machinery are separators and decanters manufacturer from 1954, we have more than 60 years experience in the design and manufacturing of centrifugal separation equipment. Huading separators and decanters are widely applied in industry of food, beverage,pharmaceutical.chemical,marine,oilfield,energy,mining,mechanical engineering and waste water treatment etc.

2. How do we guarantee the quality?
We are a professional manufacturer with experience of more than 60 years. We have the most advanced equipment and first-class workers. Each of our processing procedures is strictly inspected and has the test report. We also accept FAT testing from customers.

3. How long is the warranty period?
One year after the machine arrives customer site

4. Do you have technicians for installation, commissioning and training?
After-sales service is available, we can send our technicians to customer site for installation,commissioning and training, also can guide online through video

5. What's the payment terms you can accept?
Generally T/T, L/C at sight
