Product Details
Place of Origin: CHINA
Brand Name: HUADING
Certification: CE ISO
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD20,000-USD200,000 per set
Packaging Details: fumigation wooden case
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Machine Type: |
Vertical |
Operation: |
Automatic |
Application: |
Solid Liquid |
Capacity: |
200-200,000L/H |
Drive: |
Gear |
Color: |
Green, White, Red |
Machine Type: |
Vertical |
Operation: |
Automatic |
Application: |
Solid Liquid |
Capacity: |
200-200,000L/H |
Drive: |
Gear |
Color: |
Green, White, Red |

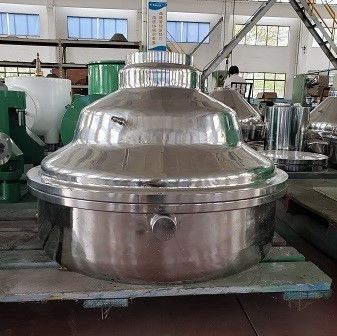

Multi-functional compact and precise disc separator with stable operation
Disc separator description
The disc separator is a vertical separator. The rotating bowl is installed on the upper end of the vertical shaft. There is a group of stacked discs in the bowl. There are tiny gaps between the discs. When passing through the gap between the discs, under the action of strong centrifugal force, the solid particles accumulate in the sedimentation area of the bowl, and the separated liquid moves up the bowl and leaves the bowl, and is discharged from the liquid outlet. After a certain period of time, the solid slag will be discharged from the slag outlet of the separator. The disc shortens the settlement distance of solids and widens the settlement area of the bowl, which greatly improves the production capacity of the separator.
Application
Pharma: Vaccine, fermentation broth, enzyme...
Vegatable oil: soybean oil, peanut oil, sunflower oil, sesame oil, coconut oil...
Animal oil: fish oil, tallow, lard, chicken oil...
Mineral oil: lubricating oil, fuel, hydurulic oil...
Biodiesel: methyl ester, glycerin...
Dairy: clarification, skimming.
Beverage: tea, coffee, beer, fruit juice, vegetable juice...
Biological fermentation: bacillus, yeast, e.coil...
Algae: spirulina, chlorella...
Main parameter
Voltage | 220-440V |
Power | 4-90KW |
HMI | SIEMENS |
PLC | SIEMENS |
Frequency converter | ABB or CUMARK |
Motor | ABB or WANNAN |
Manufacturing
