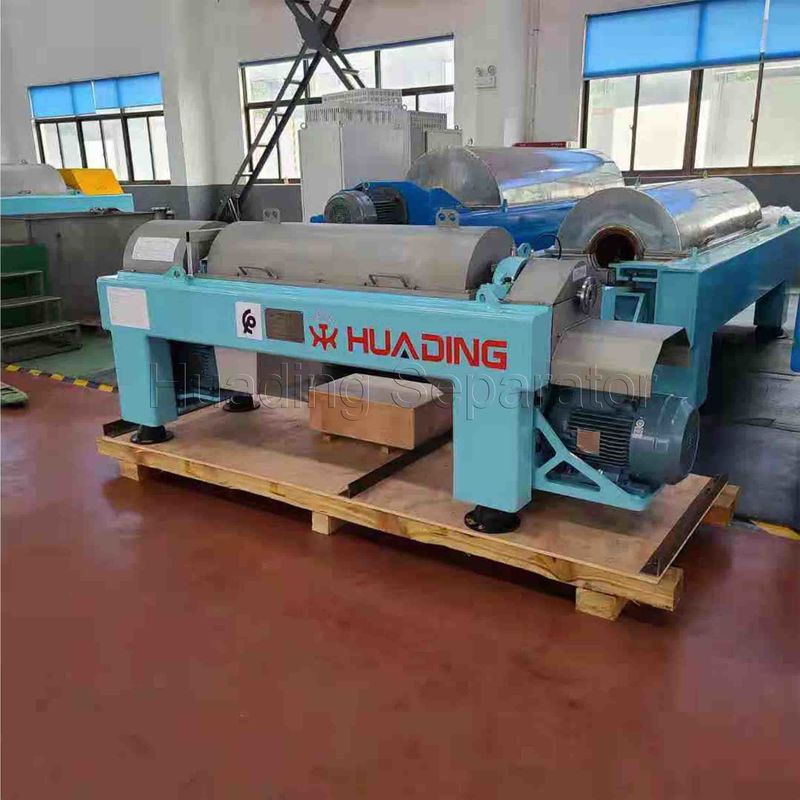

500L/H Decanter Centrifuge Separators LW Oil Treatment Machine

Fully sealed explosion - proof horizontal decanter centrifuge for oil field treatment

Product description

The feed of the oilfield is successively fed into the inner cylinder of the conveying screw from the feed pipe, and then enters the bowl after being accelerated. Under the action of the centrifugal force field, the heavier solid phase is accumulated on the wall of the bowl to form a sediment layer. The conveying screw pushes the accumulated solid phases to the cone end of the rotating bowl from time to time, and discharges them out of the machine through the slag discharge port. The lighter liquid phase forms the inner liquid ring, which overflows the bowl from the overflow port at the large end of the bowl, and is discharged out of the machine through the liquid discharge port. The three-phase decanter centrifuge can continuously feed, separate, wash and discharge materials at full speed. It has the characteristics of compact structure, continuous operation, stable operation, strong adaptability, large production capacity, and convenient repair. It is suitable to separate the solid phase with particle size greater than 0.005mm and the concentration range is 2-40% suspension.

The raw materials of the centrifuge: different raw materials have different physical and chemical goals such as wear resistance and corrosion resistance. The horizontal spiral sedimentation centrifuge is a horizontal spiral discharge. Settling equipment operated in succession. The operating principle of this type of centrifuge is: the drum and the screw rotate at a high speed in the same direction at a certain differential speed. Or duplex stainless steel, ceramic components must be selected for abrasive components. Differential speed control of the centrifuge: Different differentials have different control precisions, and the service life and repair interest are very different. The higher the differential speed accuracy, the better the adaptability to materials, so it is advisable to choose equipment with high differential speed accuracy.

Design advantage

-All parts contact with feed are made of high quality stainless steel.

-Double motors design, the differential is adjustable.

-High oil recovery rate.

-Highly automation, low personal cost.

-The bowl and screw are drivrn by motors through belts.

Main parameter
