Product Details
Place of Origin: CHINA
Brand Name: HUADING
Model Number: WYB
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD20,000-USD200,000 per set
Packaging Details: fumigation wooden case
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Machine Type: |
Horizontal |
Operation: |
Manual |
Application: |
Solid Liquid |
Drive: |
Compressed Air |
Color: |
Green, White, Red |
Machine Type: |
Horizontal |
Operation: |
Manual |
Application: |
Solid Liquid |
Drive: |
Compressed Air |
Color: |
Green, White, Red |
Carbon steel horizontal pressure leaf filter for solid liquid seapration
The horizontal pressure leaf filter is a kind of efficient, environmental-friendly, energy -saving precision clarification equipment with closed automatic filtration. It is widely used in such industries as medicine, biology, grain and oil, prteochemical industry, chemical industry, petroleum, food, beverage, sugar, etc.
Working principle
The filter screen plate is the major component for the filter. It consists of multiple layers of stainless steel screens of different specification. In the middle there is a passage for the filtrate, at the outside there is frame.
At the lower part of screen plate there is a nozzle for the discharge port which is inserted into the collection pipe, in between the nozzle and socket of collection pipe there is rubber “O” ring for sealing.
Benefits
-Closed filtration, environmental-friendly without pollution.
-The automatic drawing structure of the filter plate makes it convenient to remove residues and observe.
-Double-side filtration, large filtration area and high residue holding capacity.
-Vibration residue discharging reduces labor intensity.
-Hydraulic control, automatic operation.
-The equipment can be made into a filtration system of high capacity and large area.
| Area |
Cylinder diameter(mm) |
Working pressure(MPa) |
Working temperature(℃) |
Capacity | ||
| Oil | Sulfur | Beverage | ||||
| 5, 10, 15 | Ø900 | 0.4 | ≤150 | 0.3-0.4 | 0.4-0.6 | 1.2-1.5 |
| 20, 25, 30, 35 | Ø1200 | |||||
| 40, 45, 50 | Ø1500 | |||||
| 60, 70, 80 | Ø1600 | |||||
| 90, 100, 120 | Ø1800 | |||||
| 140, 160, 180, 200 | Ø2000 | |||||

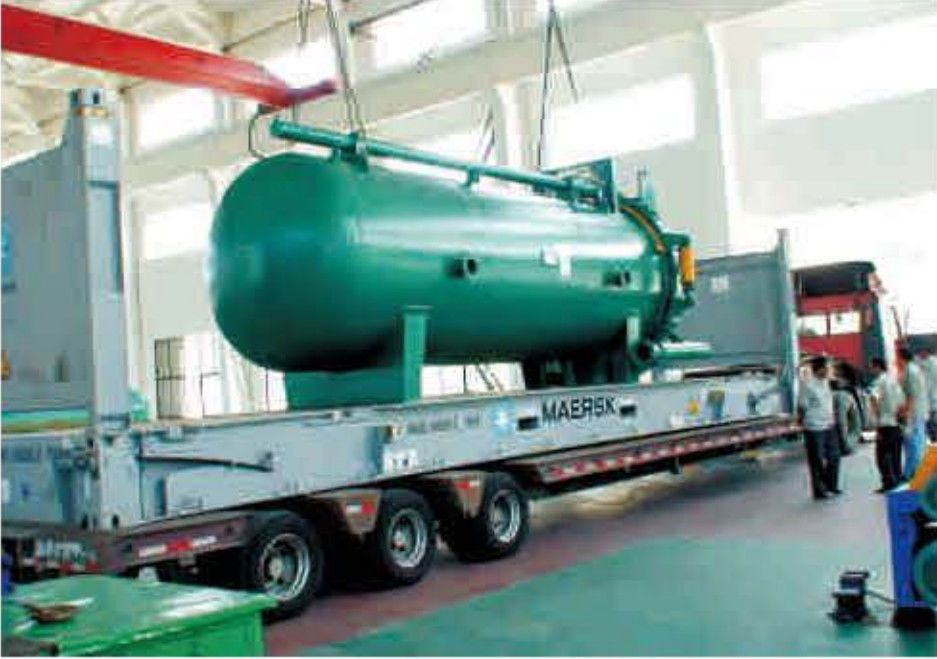

Delivery
