Highlight:

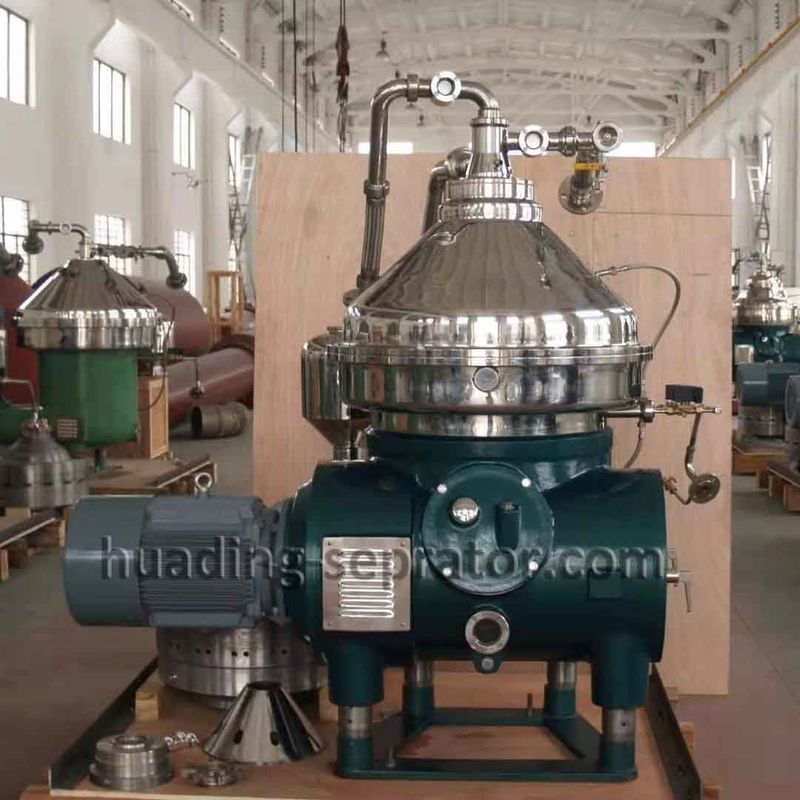

10000L H Disc Oil Separator
, 4kw Disc Oil Separator
, 4kw engine oil refinery machine
5000-10000L/H Big capacity disc separator for edible oil refining
Company Overview
Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation technology in China.
The company has over 60 years experience in the design and manufacturing.
Why Choose Us
1. 60+ years experience: HUADING has been manufacturing centrifuges since 1954.
2. 40000+ installations: HUADING separators are widely used in more than 50 countries/regions.
3. Innovation: More than 100 models are created to apply boardly in many fields.
Working principle
1. Feeding pipe
2.Centripetal pump
3. Discharge port
4. Sliding piston
5. Small piston
6. Sliding piston chamber
7. Water room
After starting and reaches the full speed, the operating water 7 gets into the sealed chamber 6 to make
the piston 4 rise, close the outlet 3. Then the material to be separated is fed into the bowl from pipe 1.
Due to the centrifugal force, the impurities gather on the periphery of the bowl. When at presentintervals,
the operating water 7 flows into open chamber 5 and forces the sliding piston to drop down, open the outlet 3,
the impurities is discharged outside the bowl from outlet 3 and outside the machine by impurities collection set;
at the same time, the light phase gather in the center of the bowl, and is discharged outside the machine by
centripetal pump 2, heavy phase was introduced to centripetal pump room via disc gland,and discharged out
by centripetal pump, finish one cycle, operating water 7 enter into sealing chamber 6, raise up piston 4, ejection
port 3 closed...cycle in this way.
Manufacturing standard
| 1. JB/T20139-2011 |
Centrifugal machinery requirements |
| 2. JB/T8051-2008 |
Specification for strength calculation of centrifuge bowl |
| 3. GB19815-2005 |
Safety requirements for centrifuges |
| 4. JB/T6418-92 |
Centrifugal machinery - determination of cleanliness |
| 5. JB/T7214-94 |
General technical specification for centrifugal machinery coating |
Main parts
Manufacturing
