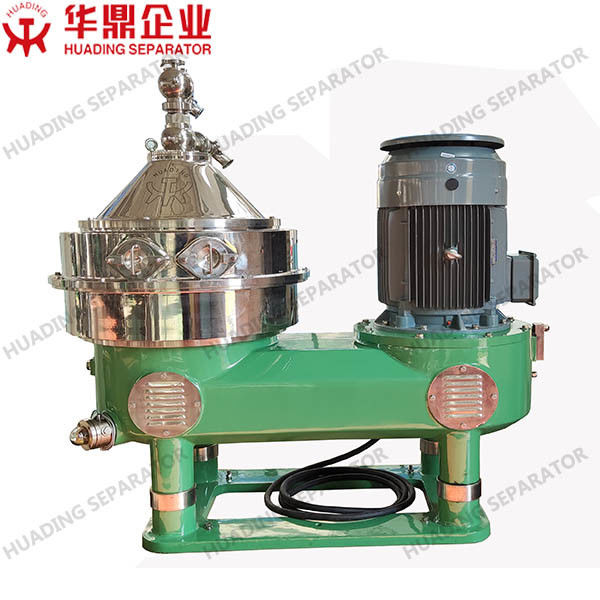

PTSX Disc Stack Centrifuge Specification 316L Edible Oil Refining Machine

Product Details

Place of Origin: YIXING

Brand Name: HUADING

Certification: CE

Model Number: PTSX

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: 20000-200000 USD/SET

Packaging Details: Standard seaworthy package

Delivery Time: 60 Working days

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price
Highlight:

PTSX disc stack centrifuge specification

,

316L disc stack centrifuge specification

,

316L edible oil refining machine

Application:
Fermentation Broth Clarification
Model:
PTSX
Capacity:
500-20000 L/H
Motor Power:
5.5-37KW
Material:
SUS304/316L
PLC:
SIEMENS
Frequency:
ABB
Bearing:
SKF/FAG
Application:
Fermentation Broth Clarification
Model:
PTSX
Capacity:
500-20000 L/H
Motor Power:
5.5-37KW
Material:
SUS304/316L
PLC:
SIEMENS
Frequency:
ABB
Bearing:
SKF/FAG
PTSX Disc Stack Centrifuge Specification 316L Edible Oil Refining Machine

HUADING PTSX series 2&3 disc nozzle stack separator for clarification of fermentation broth

Product description

The model PTSX series disc stack separators from HUADING SEPARATOR have been widely used for the clarification of fermentation broth. The equipment adopt no media centrifugal to realize the 2phase solid liquid and 3phase solid liquid liquid separation. Compare to other separation equipment, such as filter, the disc separator has a higher separation efficiency, more selective and more cost-reduce.PTSX Disc Stack Centrifuge Specification 316L Edible Oil Refining Machine 0

Operation principle

Nozzle separators are continuously operating disk centrifuges. They are built as centrifugal clarifiers and separators and are more solids-orientated than self-cleaning separators. When they are configured to function as clarifiers, they are called concentrators. The Nozzle bowl separator is most often used for classification of solids according to size, dewatering and washing of solids, and for clarification of liquids containing relatively high concentrations of solids. It can also be used for 3 phase applications where two liquid phases and a solids phase need to be separated in one step. They are used to thicken solids from suspensions.

Nozzle separators are absolute specialists in the processing of fermentation products in biotechnology, the pharmaceutical and food industries.

The separated solids are discharged continuously through nozzles fitted at the bowl periphery. The nozzle separators are equipped with a hydraulically operated ejection system which enables both partial and total ejections to be triggered during product separation.

The advantage, when processing difficult products, the separating time to the next CIP cycle can be extended. The time-controlled or process-dependent ejections additionally optimize cleaning of nozzles, bowl and disks.

Many liquid processes contain relatively high levels of solid content and when high throughputs are required with solids content of more than 10% the continuous discharge effect created by nozzles in the periphery of the bowl is put to use.

PTSX Disc Stack Centrifuge Specification 316L Edible Oil Refining Machine 1

Product parameter

Product 2phase disc stack separator
Model PTSX
Capacity 500-20000L/H
Motor power 5.5-37KW
Material Food grade stainless steel
Control PLC control
Operation Automatic feeding and cleaning
Discharging type Batch-type, Automatic
Weight According to the model



Advantages:

  • High rotation speed and separation factor, better separation effect
  • Automatic feeding and discharging
  • PLC and frequency control, intelligent operation and tracking
  • Screen touch operation, easy operation
  • Easy to clean, low maintenance cost

Company introduction

Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 60 years, established in 1954, is the leader in mechanical separating technology in China. The machines produced by Huading Separator are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields, water treatment, such as waste water treatment, sludge dewatering, etc

PTSX Disc Stack Centrifuge Specification 316L Edible Oil Refining Machine 2

FAQ

1.Who you are?
Huading Machinery are separators and decanters manufacturer from 1954, we have more than 60 years experience in the design and manufacturing of centrifugal separation equipment. Huading separators and decanters are widely applied in industry of food, beverage,pharmaceutical.chemical,marine,oilfield,energy,mining,mechanical engineering and waste water treatment etc.

2.How do you guarantee the quality?
We are a professional manufacturer with experience of more than 60 years. We have the most advanced equipment and first-class workers. Each of our processing procedures is strictly inspected and has the test report. We also accept FAT testing from customers.

3.How long is the warranty period?
One year after the machine arrives customer site

4. Do you have technicians for installation, commissioning and training?
After-sales service is available, we can send our technicians to customer site for installation,commissioning and training, also can guide online through video

5.What's the payment terms you can accept?
Generally T/T, L/C at sight
