Pharma Yeast Centrifugal Separator Mineral Disc Stack Centrifuge

Product Details

Place of Origin: CHINA

Brand Name: HUADING

Certification: CE ISO

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD20,000-USD200,000 per set

Packaging Details: fumigation wooden case

Delivery Time: 60 working days

Payment Terms: L/C, T/T

Get Best Price
Highlight:

Pharma Yeast Centrifugal Separator

,

Mineral Yeast Centrifugal Separator

,

Mineral disc stack centrifuge

Machine Type:
Vertical
Operation:
Automatic
Application:
Solid Liquid
Capacity:
200-200,000L/H
Drive:
Gear
Color:
Green, White, Red
Machine Type:
Vertical
Operation:
Automatic
Application:
Solid Liquid
Capacity:
200-200,000L/H
Drive:
Gear
Color:
Green, White, Red
Pharma Yeast Centrifugal Separator Mineral Disc Stack Centrifuge

Strong centrifugal force long service life solid bowl disc stack separator



Product description

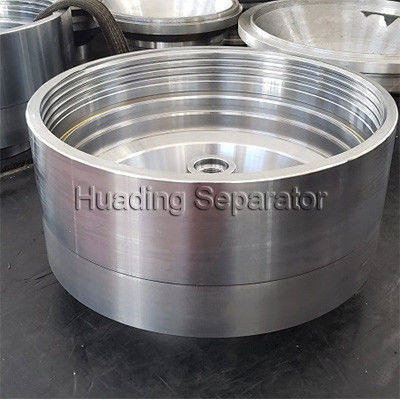

The bowl of disc centrifuge has a set of disc-shaped parts overlapped with each other. It is an important component of disc centrifuge. There is a small gap between the disc and the disc. The suspension is added to the bowl by the feeding tube located at the center of the bowl. When the suspension flows to the gap between the discs, the solid particles settle on the disc under the action of centrifugal force to form sediment. The sediment slides along the disc surface and falls off the disc and accumulates in the diameter of the bowl. The separated liquid discharges the bowl at the outlet.
The main function of disc centrifuge is to shorten the settling distance of solid particles and enlarge the settling area of the bowl. The production capacity of the separator is greatly improved by installing discs in the bowl. Solids accumulated in the drum need to be artificially cleared or discharged from the bowl through the slag discharge mechanism when the separator shuts down.



Application

-Vegetable oil: vegetable oil purification...

-Pharma: fermentation broth clarification; enzyme separation; liquid medicine clarification...

-Juice: Pectin separation; juice purification; pulp removing...

-Mineral oil: solid impurities clarification...



Main parameter

Voltage 220-440V
Power 4-90KW
HMI SIEMENS
PLC SIEMENS
Frequency converter ABB or CUMARK
Motor ABB or WANNAN



Advantage

-High rotataion speed

-Low noise

-No pollution

-Low vibration

-Stable operation

-Strong centrifugal force

-The professional designed centripetal pump system has many advantages such as stability outlet pressure, large regulating sphere, easily operating and so on.



Project application

Pharma Yeast Centrifugal Separator Mineral Disc Stack Centrifuge 0

Pharma Yeast Centrifugal Separator Mineral Disc Stack Centrifuge 1
