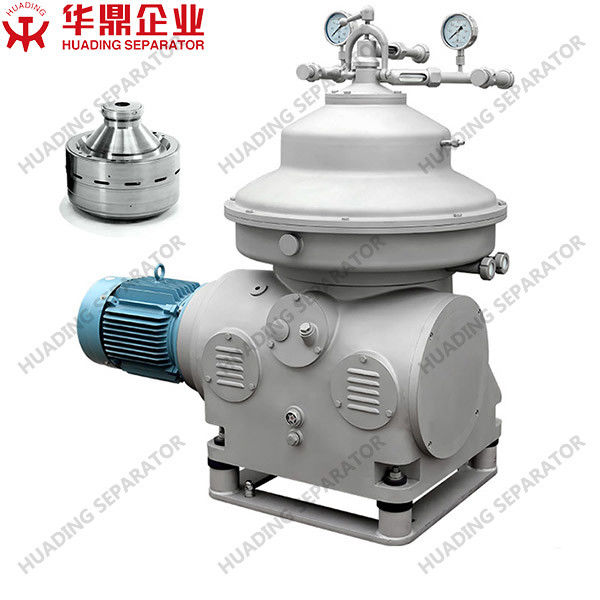

PLC Controlled Oil Water Centrifuge For Pharmaceuticals And Biotechnology

Structure and Principle
The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.

Company introduction

Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 60 years, established in 1954, is the leader in mechanical separating technology in China. The machines produced by Huading Separator are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields, water treatment, such as waste water treatment, sludge dewatering, etc

Main features

1. Easy to clean and easy to maintain
2. Full-automatic vibration detector can monitor the vibration strength value of the centripetal pump at any time.
3. Include automatically alarm
4. With PLC control and screen touch operation
5. Running in high speed, high g-force, operating stability, low noise
6. Stability outlet pressure, large regulating sphere and operating easily.
7. Self-discharging , self-cleaning


Working Principle
There is a set of disc-shaped parts in the drum, which are overlapped with each other. There is a small gap between discs. The suspension (or emulsion) is added to the drum through the feed pipe in the center of the drum. When the suspension (or emulsion) flows through the gap between the discs, the solid particles (or droplets) settle on the discs under the action of centrifuge to form sediment (or liquid layer). The sediment slides along the surface of the disc and gets away from the disc and accumulates in the part with the largest diameter in the drum. The separated liquid is discharged from the outlet of the drum. The function of disc is to shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum. The production capacity of the separator is greatly improved due to the installation of disc in the drum. The solids accumulated in the drum are removed manually after the separator is shut down, or discharged from the drum through the slag discharge mechanism without shutting down.

Advantages
1.) High speed, stable operation, all import and export systems are sealed, noise is low, and separation effect is good.
2.) The professionally designed centripetal pump system has stable output pressure, large adjustment range and convenient operation.
3.) The drum has a special structure, which has a large processing capacity and good degreasing and clarifying effect.
4.) Professionally designed automatic control cabinet, can observe the vibration value of the equipment at any time.

Two Operations Method
1. Liquid solid separation (i.e. separation of bottom concentration suspension), which is called clarification operation, that is two-phase separation.
2. Liquid-liquid separation (or liquid-liquid-solid) separation (i.e., the separation of emulsion) is called separation operation, that is three-phase separation.

Product description

HUADING MISD series disc stack separator used for the fuel oil treatment, it can be used for the liquid purification and the separation of liquid mixtures. The feed enter the rotary bowl after going through the inlet and are clarified, purified or separated in the disc system device.
According to the situation of the feeding mixtures of oil water, automatic residue discharging separator and flushing separator is alternative. The automatic residue discharging separator mainly used for the separation of the feeding liquid with a high solid content, it have the function of automatic residue discharging, no need to disassemble the equipment very often to clean the equipment. The flushing separator has the solid retaining type bowl, it mainly used to treat the liquid with the solid content low of 0.5%, the solid substances after separation will accumulate in the residue area for manual removal

Specification

FAQ

1. Who you are?
Huading Machinery are separators and decanters manufacturer from 1954, we have more than 60 years experience in the design and manufacturing of centrifugal separation equipment. Huading separators and decanters are widely applied in industry of food, beverage,pharmaceutical.chemical,marine,oilfield,energy,mining,mechanical engineering and waste water treatment etc.
2. How do you guarantee the quality?
We are a professional manufacturer with experience of more than 60 years. We have the most advanced equipment and first-class workers. Each of our processing procedures is strictly inspected and has the test report. We also accept FAT testing from customers.
3. How long is the warranty period?
One year after the machine arrives customer site
4. Do you have technicians for installation, commissioning and training?
After-sales service is available, we can send our technicians to customer site for installation,commissioning and training, also can guide online through video
5. What's the payment terms you can accept?
Generally T/T, L/C at sight
