Product Details
Place of Origin: YIXING
Brand Name: HUADING
Certification: CE
Model Number: MCSX
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: 20000-10000 USD/SET
Packaging Details: Stardard seaworthy packaging
Delivery Time: 60 Working days
Payment Terms: L/C, D/A, D/P, T/T
Usage: |
Dairy Clarification |
Operation: |
Continuous, Full Automatic, Easy Operation |
Capacity: |
2000-20000L/H |
Discharge: |
Automatic Discharge |
Bowl Material: |
304 Or 316L Food Gade |
Motor Power: |
4-90KW |
Motor: |
ABB |
Frequency Converter: |
ABB |
PLC: |
SIEMENS |
Bearing: |
SKF/FAG |
Warranty: |
1 Year |
Weight: |
According To The Model |
Dimension: |
According To The Model |
Usage: |
Dairy Clarification |
Operation: |
Continuous, Full Automatic, Easy Operation |
Capacity: |
2000-20000L/H |
Discharge: |
Automatic Discharge |
Bowl Material: |
304 Or 316L Food Gade |
Motor Power: |
4-90KW |
Motor: |
ABB |
Frequency Converter: |
ABB |
PLC: |
SIEMENS |
Bearing: |
SKF/FAG |
Warranty: |
1 Year |
Weight: |
According To The Model |
Dimension: |
According To The Model |

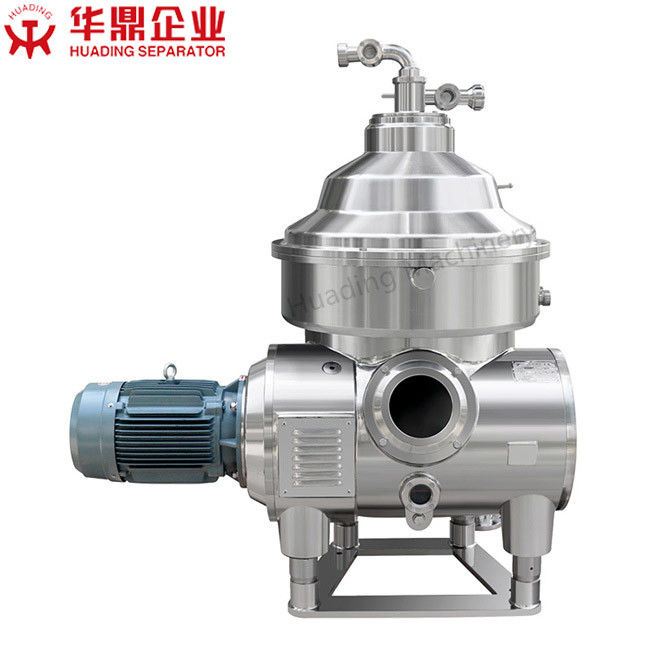

Automatic operation 2phase disc stack separator for dairy milk clarification process
This type disc stack separator applied in the dairy clarification process, used for removing the impuritied in the collected fresh dairy liquor.
After decades of reseach and development, Huading work out special separation solutions for customers
The disc stack centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency.
The disc stack provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids.
The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.
Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 50 years – which is why disc stack centrifuges from Huading Separator perform this crucial separation function exceptionally well.
Today, Huading Separator is the leader in mechanical separating technology in China. Huading developments are used in a wide range of areas in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.
