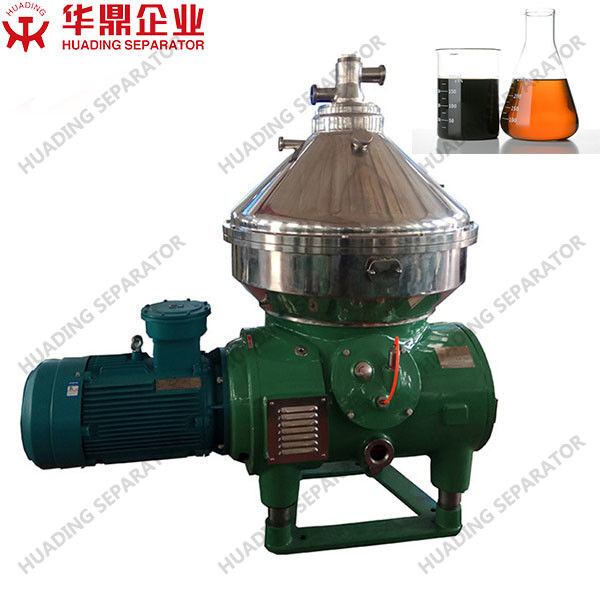

Huading Separator Oil Water Centrifuge For Food Beverage Pharmaceutical Chemical Marine

Working principle
The disc stack centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency.
The disc stack provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids.
The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.

Feature
1. All parts directly touch to material are made of stainless steel
2. Continuous and automatic operation can minimize labor costs, easy in installation and maintenance
3. High bowl rotation speed with high G-force via VFD adjustable
4. Automatic discharging with PLC control system and LED touch screen operation
5. Full-automatic vibration detector and alarm
6. Running in high speed, operating stability and low noise
7. Stability outlet pressure, large regulating sphere and operating easily

Company introduction

Huading Separator, Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation technology in China.

The company has over 60 years experience in the design and manufacturing of centrifugal separation equipment. Complete systems, customized for specific applications, can be provided in a compact, fully tested, skid-mounted assembly. The company’s equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help customers to clarify, concentrate, and separate products in production.

Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment etc.

Huading Separator’s organization works closely with customers to help them stay ahead in their business line.

Application

1. Pharmaceutical: used in clarification of fermentation broth, separation of vaccines, separation of enzyme preparations, filtration of oral liquids, etc.

2. Vegetable oil: used for crude oil solid removing and degumming & deacidification & washing process.

3. Beverage: used for fruit juice and vegetable juice clarification.

4. Biodiesel: crude oil degumming & deacidification & wahsing process; Methyl ester & glycerin separation.

5. Mineral oil: purification of fuel oil and lubricating oil in mineral oil industry, such as marine main engine, land diesel engine, power station, etc.

Design advantages

1. Sliding piston design: the machine is fully automatic, and the operating water won't contact with the feed.

2. Fast speed design: the bowl rotates at a very fast speed and provides a big centrifugal force which can separate very small particles.

3. High precision design: the machine works smoothly, the separation effect is better.
