GMP Disc Stack Separator Centrifuge Vaccine Produce

Product Details

Place of Origin: CHINA

Brand Name: HUADING

Certification: CE ISO

Model Number: BTSX

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD100,000-USD1,000,000 per set

Packaging Details: fumigation wooden case

Delivery Time: 180 working days

Payment Terms: L/C, T/T

Get Best Price
Highlight:

GMP Disc Stack Separator

,

BTSX Disc Stack Separator

,

BTSX disc stack centrifuge

Machine Type:
Vertical
Operation:
Automatic
Application:
Solid Liquid
Capacity:
Depends On Model
Color:
Green, White
Driving:
Gear
Machine Type:
Vertical
Operation:
Automatic
Application:
Solid Liquid
Capacity:
Depends On Model
Color:
Green, White
Driving:
Gear

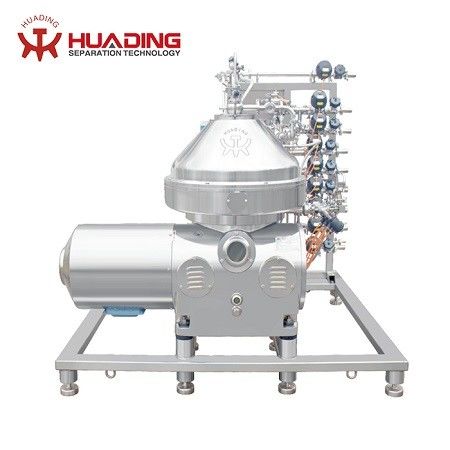

GMP Disc Stack Separator Centrifuge Vaccine Produce

Sip system , skid-mounted disc centrifuge separator for vaccine produce



Centrifugal separation technology for vaccine production

Disc separator with SIP&CIP is designed for aseptic processes, which is becoming increasingly important for handling sensitive products in the pharmaceutical, biotech and food industries. This is applicable for instance for the separation of proteins from fermentation solutions for pharmaceutical products, processing genetically modified micro-organisms or manufacturing starter cultures in the food and pharmaceutical industries, production of vaccines or the processing of genetically modified organisms. Phase separation by means of centrifugal force in a separator is a key aspect in the process involved. And this important step in the process must also take place under sterile conditions. This means that the entire separator system must be steam-sterilizable. All plant components such as fermenters and receiving tanks for the separated components are connected aseptically to the system.

Huading Separator has developed the clarifier BTSX-M series in steam-sterilizable design (SIP) specifically for these fields of application which has an hourly throughput capacity of 100 to 10,000 liters. The new disk type separator is suitable for the continuous clarification of suspensions, separating bacteria, mammalian cells, cell fragments and yeast under sterile conditions.

Product description

The complete disc separator with SIP&CIP is steam-sterilizable. The machine is sterilized at rotate using superheated steam at overpressure of 2.5 bar and a maximum possible temperature of 137 °C. After sterilization, the separator is blanketed with sterile air, which also cools down the machine, until the next product run. Sterilization avoids cross-contamination between different fermentation products which are treated in the same separator. Chemical cleaning in place (CIP) is carried out before the sterilization process (SIP). Cleaning liquid is circulated through the separator and the connected system.

A further aspect in the recovery of proteins in the separator is just as important as the prevention of product contamination: the guarantee of biocontainment. Therefore, Huading Separator offers the BTSX-M in steam-sterilizable design as an absolutely enclosed machine and plant concept which prevents toxic bacteria or living cell vaccines from escaping into the atmosphere.

Application:
– insulin
– monoclonal antibodies
– blood-derived products
– vaccine
– sera
– starter cultures
– pharmaceutical proteins
– animal cell cultures
– hormones
other applications, such as E-Coli, inclusion bodies and mammalian cells starter cultures, such as lactic acid bacteria, fermentation broth and enzymes treatment of genetically engineered microorganisms.

Main parameter

Voltage 220-440V
Power 4-90KW
HMI SIEMENS
PLC SIEMENS
Frequency converter ABB or CUMARK
Motor ABB or WANNAN



Machine installation

GMP Disc Stack Separator Centrifuge Vaccine Produce 0GMP Disc Stack Separator Centrifuge Vaccine Produce 1
