Product Details
Place of Origin: YIXING
Brand Name: HUADING
Certification: CE
Model Number: GQ
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: 4000-15000 USD/SET
Packaging Details: Standard seaworthy package
Delivery Time: 30 Working days
Payment Terms: L/C, D/A, D/P, T/T
Usage: |
Solid Liquid Separation |
Material: |
Food Grade Stainless Stel |
Motor Power: |
0.75-3 KW |
Weight: |
According To The Model |
Usage: |
Solid Liquid Separation |
Material: |
Food Grade Stainless Stel |
Motor Power: |
0.75-3 KW |
Weight: |
According To The Model |

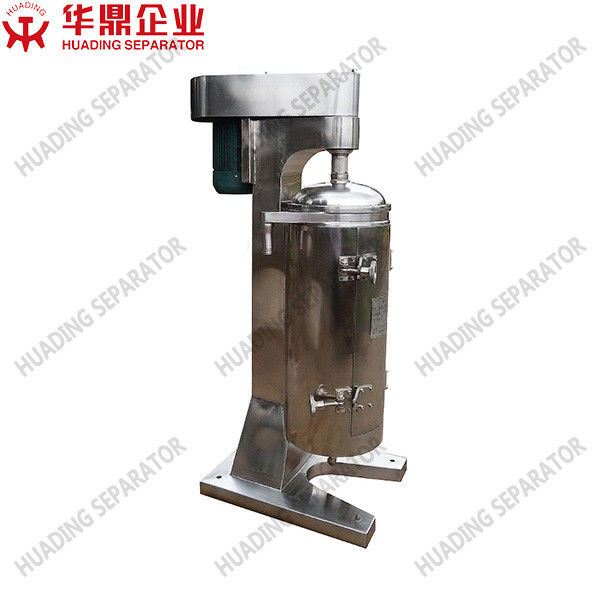

GQ type 2phase tubular centrifuge for liquid clarification solid liquid separation
It is mainly used for various types of suspensions with relatively high separation difficult, especially suitable for solid-liquid separation of suspensions with low concentration, fine particles and little difference in the specific gravity of solid and liquid phases. The solid particles with greater density will gradually deposit on the inner walls of the bowl and form residues, which will be manually discharged after the machine stops. The clarified liquids will flow to the liquid outlet on the upper part of the bowl for discharging
The tubular centrifuge is a kind of centrifugal equipment with very high separation factor. The minimum separation particle is 1 micron. It is especially suitable for extraction, concentration and clarification of materials with little difference in the specific gravity of liquid and solid phases, fine solid particle size, low solid content and strong corrosive media. It is mainly used for solid liquid separation and liquid liquid solid separation of materials in such industries as food, chemical industry, beverage, biological pharmacy, blood products, etc. The machine has such features as good separation effect, high output, small floor space and convenient operation
| Model | Bowl | Passing capacity(kg/h) | Motor power(kw) | Motor speed(r/min) | Machine weight (kg) |
||||
| Diameter(mm) | Height(mm) | Volume(L) | Rotation speed(r/min) | Separation factor | |||||
| GQ/GF 45 | 45 | 280 | 0.45 | 25000-50000 | 60000 | 150 | 0.75 | 6000-12000 | 90 |
| GQ/GF 75 | 75 | 450 | 2.7 | 19000-21000 | 22500 | 500 | 1.5 | 2880 | 300 |
| GQ/GF 105 | 105 | 730 | 6 | 16300-19000 | 21000 | 1500 | 2.2 | 2880 | 480 |
| GQ/GF 125 | 125 | 730 | 7.4 | 14000-16000 | 18000 | 2000 | 3 | 2880 | 520 |
| GQ/GF 137 | 137 | 730 | 9 | 14000-15000 | 17000 | 3000 | 3 | 2880 | 550 |
| GQ/GF 142 | 142 | 730 | 10 | 14000-15000 | 17000 | 3000 | 3 | 2880 | 550 |
Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 60 years, established in 1954, is the leader in mechanical separating technology in China. The machines produced by Huading Separator are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields, water treatment, such as waste water treatment, sludge dewatering, etc
1.Who you are?
Huading Machinery are separators and decanters manufacturer from 1954, we have more than 60 years experience in the design and manufacturing of centrifugal separation equipment. Huading separators and decanters are widely applied in industry of food, beverage,pharmaceutical.chemical,marine,oilfield,energy,mining,mechanical engineering and waste water treatment etc.
2.How do you guarantee the quality?
We are a professional manufacturer with experience of more than 60 years. We have the most advanced equipment and first-class workers. Each of our processing procedures is strictly inspected and has the test report. We also accept FAT testing from customers.
3.How long is the warranty period?
One year after the machine arrives customer site
4. Do you have technicians for installation, commissioning and training?
After-sales service is available, we can send our technicians to customer site for installation,commissioning and training, also can guide online through video
5.What's the payment terms you can accept?
Generally T/T, L/C at sight
